Product Details
1. Colloidal Gold Test Cassette Marking and Bagging Machine Features:
Feeding of colloidal gold test strips→UV laser marking → mark verification via CCD inspection → vibratory bowl feeding of desiccants → storage and feeding of foil bags → automatic coding and labeling of foil bags → label application verification via CCD inspection → automatic bagging of test strips with desiccants → visual inspection and weight check of bagged products → Sealing by sealing machine → automatic output and counting. Every inspection station is equipped with automatic rejection of defective products. This line achieves complete automation of the latter stages for colloidal gold test strips, specifically the marking and packaging processes. Furthermore, it utilizes a CCD code-reading function to synchronize product information, which is bound and uploaded to the client's factory MES system. This enables comprehensive product information storage and full traceability throughout the entire production lifecycle.

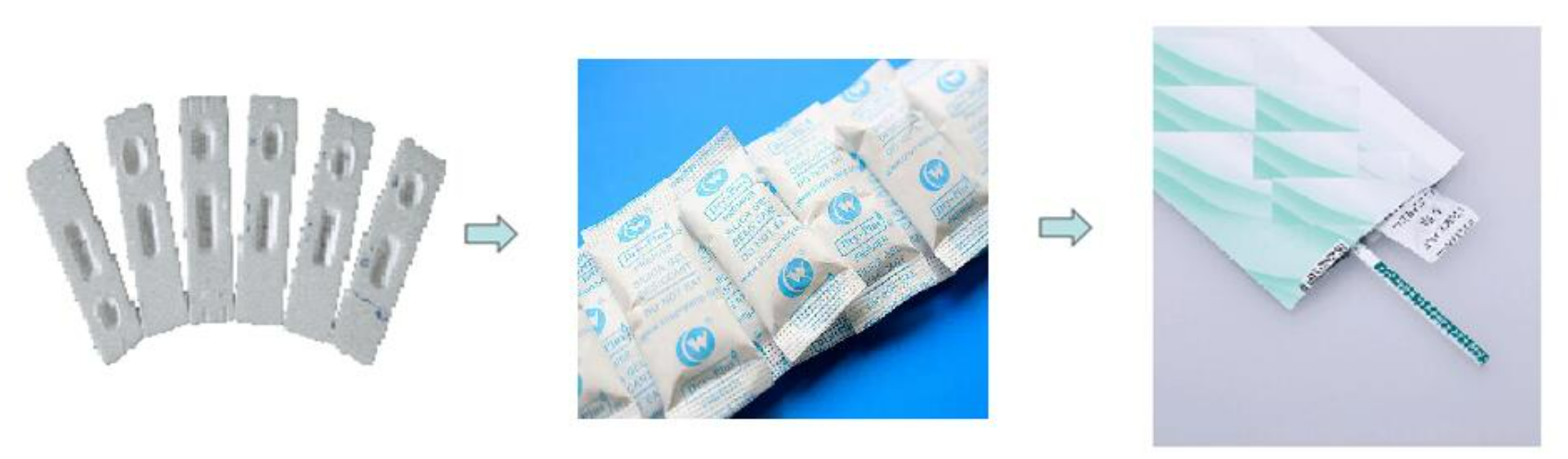

Test Cassette Desiccant Labeling & Bagging
2. Equipment Parameters
Placement Accuracy: ±0.1mmVisual Positioning Accuracy: ±0.05mm
Production Efficiency: ≥40 pcs/min, Overall Machine Efficiency approx. 3600~4200 pcs/H (Dual channel, efficiency affected by cassette dimensional accuracy)
Finished Product Yield Rate: ≥99.8%
Visual Recognition Accuracy Rate: ≥99.8%
Equipment Utilization Rate: ≥90%
Manual Labor: 1.5 persons
Air Pressure: 0.6 MPa (with an adjustable air valve)
Vacuum Negative Pressure Value: >65 kPa
Power Supply: AC380V 50Hz (Power: 4 KW)
Main Body Dimensions (L x W x H): Approx. 2800mm x 1300mm x 1900mm
Equipment Weight: Approx. 2000 kg
